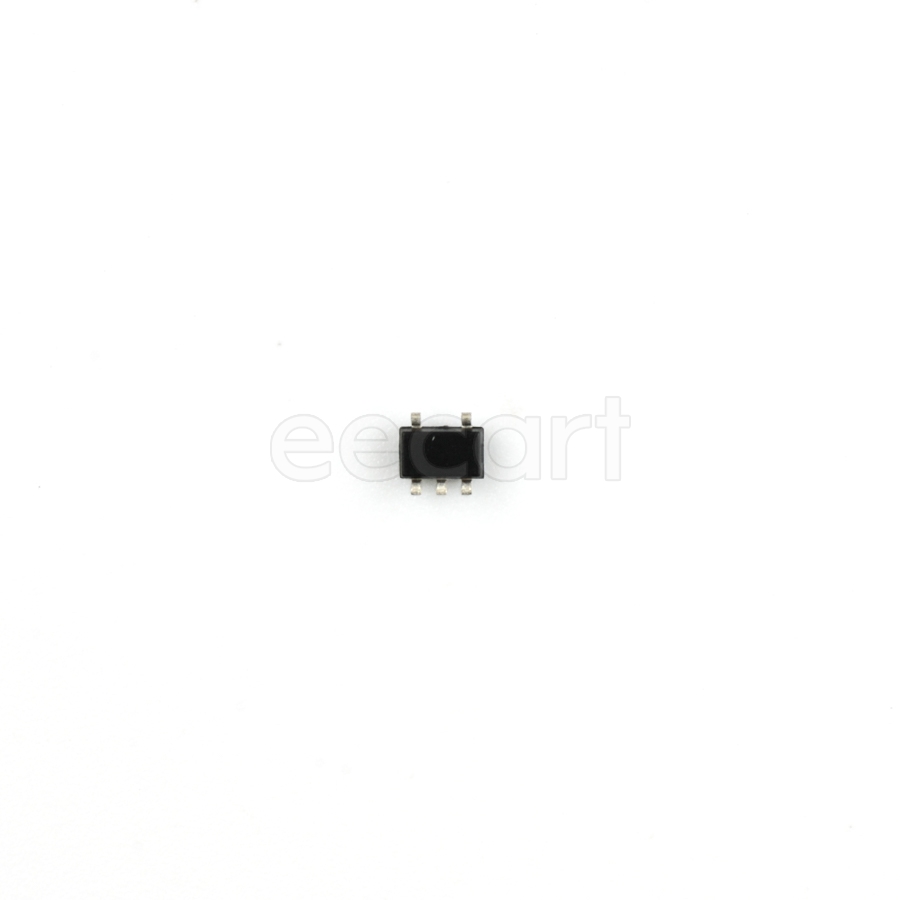

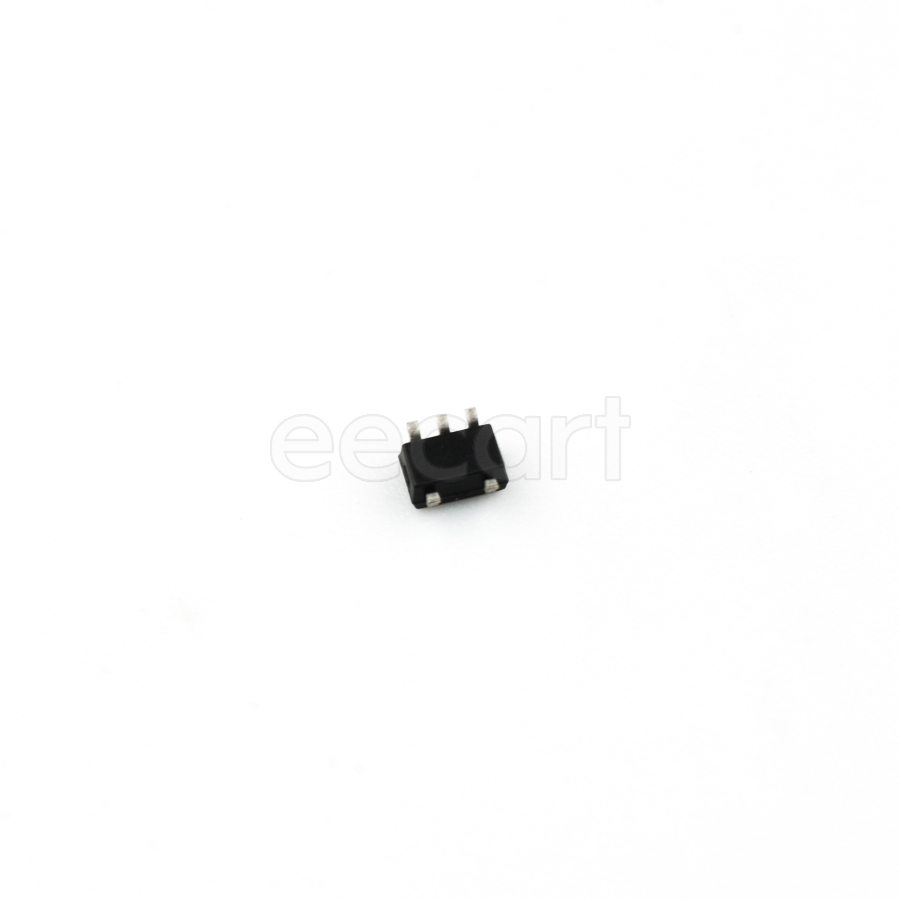

MC74HC1G04DFT1G
Manufacturer:
On Semiconductor
Mfr.Part #:
MC74HC1G04DFT1G
Datasheet:
Description:
Logic Gates, Inverters SOT-353 SMD/SMT Inverter HC Low Level Output Current:2.6 mA High Level Output Current:-2.6 mA Logic Level - Low:0.5 V to 1.8 V Logic Level - High:1.5 V to 4.2 V
| Parameter | Value |
|---|---|
| Length | 2.2 mm |
| Width | 1.35 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 5 |
| Height | 1 mm |
| Packaging | Reel |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Number of Elements | 1 |
| Output Current | 2.6 mA |
| Number of Circuits | 1 |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Max Supply Voltage | 6 V |
| Min Supply Voltage | 2 V |
| Number of Channels | 1 |
| Turn-On Delay Time | 17 ns |
| Quiescent Current | 1 µA |
| Propagation Delay | 155 ns |
| High Level Output Current | -2.6 mA |
| Low Level Output Current | 2.6 mA |
| Logic Function | Inverter |
| Number of Inputs | 1 |
| Number of Outputs | 1 |
| Number of Gates | 1 |
| Schmitt Trigger Input | No |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 months ago) |
| Logic Family | HC |
| Logic Level - Low | 0.5 V to 1.8 V |
| Logic Level - High | 1.5 V to 4.2 V |
Stock: 720
Distributors
pcbx
pcbxUnit Price$0.07594
Ext.Price$0.07594
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.07594 | $0.07594 |
| 10 | $0.06729 | $0.67290 |
| 50 | $0.05962 | $2.98100 |
| 100 | $0.05230 | $5.23000 |
| 500 | $0.04588 | $22.94000 |
| 1000 | $0.04356 | $43.56000 |
| 3000 | $0.04136 | $124.08000 |
| 5000 | $0.03881 | $194.05000 |
